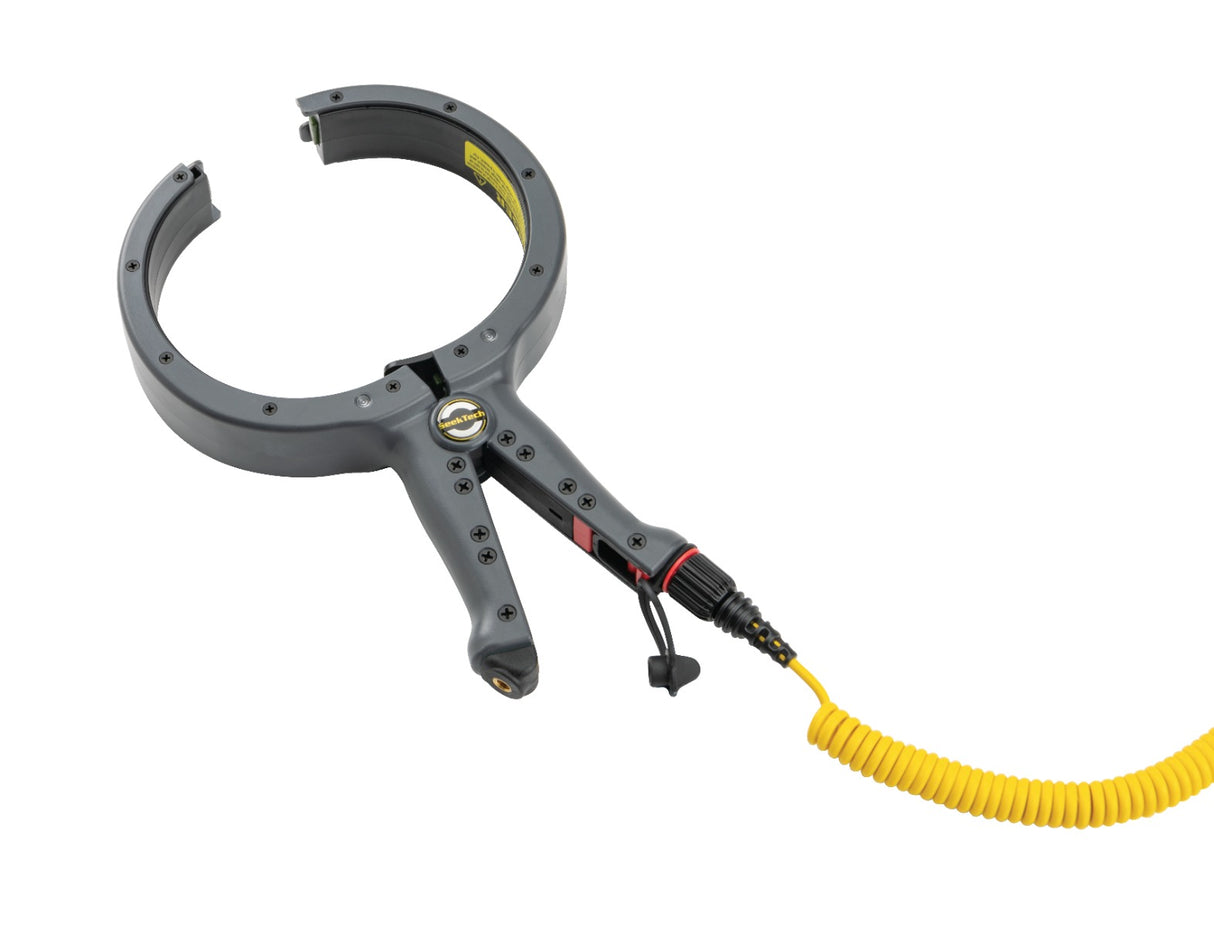

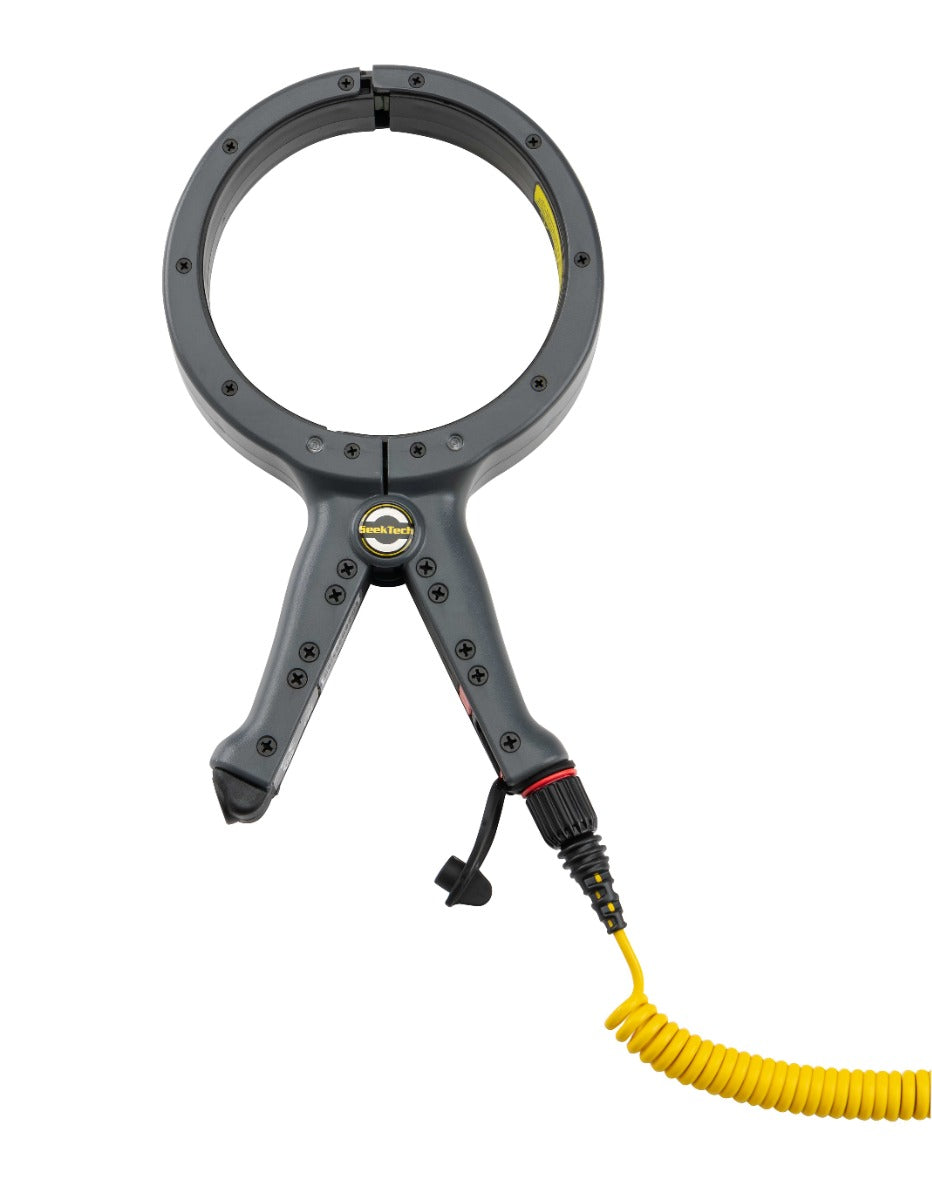

RIDGID 72963 SeekTech Inductive Signal Clamp
RIDGID 72963 SeekTech Inductive Signal Clamp
The RIDGID SeekTech Inductive Clamp allows users to apply a signal to a cable or pipe when a direct connection is not possible. Compatible with all RIDGID transmitters.
Features:
-
Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter
-
Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510
-
Additionally compatible with any comparable line transmitter which has a 10-watt or less maximum output power if the frequency is under 45 kHz, and a 1-watt maximum if above 45 kHz
-
Can be used with frequencies from 8 kHz to 262 kHz
-
Removable and easy-to-store coiled cord
-
Ergonomic handle for easy opening and closing
-
Convenient pull tab for opening and closing in tight spaces
Specifications:
|
Weight |
0.5 kg (1.1 lb) |
|
Height |
264 mm (10.4 in) |
|
Width |
148 mm (5.8 in) |
|
Depth |
36.8 mm (1.5 in) |
|
Inside Diameter |
119 mm (4.7 in) |
|
Cord Length |
0.75 m (2.5 ft) |
|
Power Source |
Line transmitter with 10 watts or less max output power with frequency < 45 kHz, or 1-watt max if > 45 kHz |
|
Frequencies |
8 kHz to 262 kHz |
-
