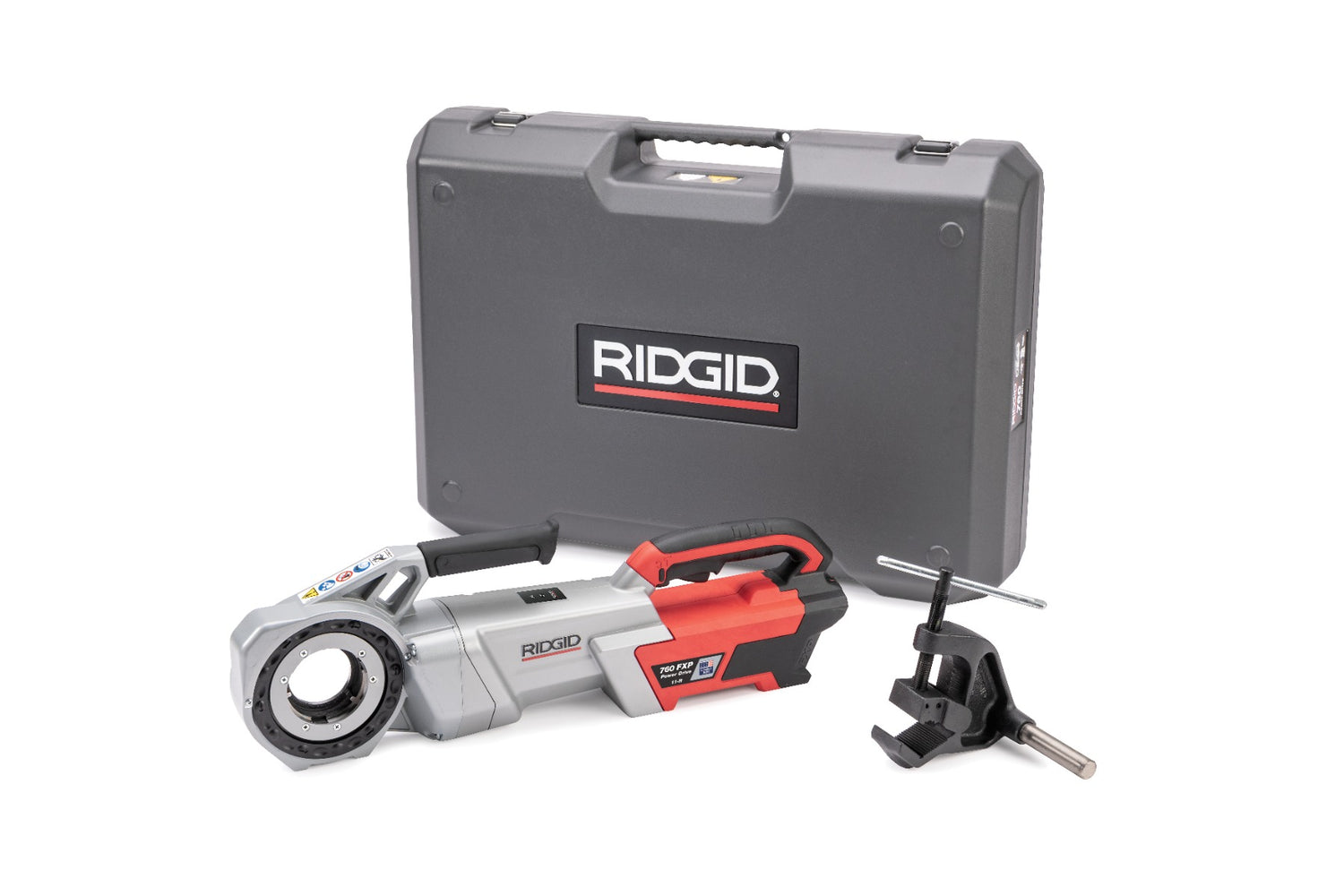

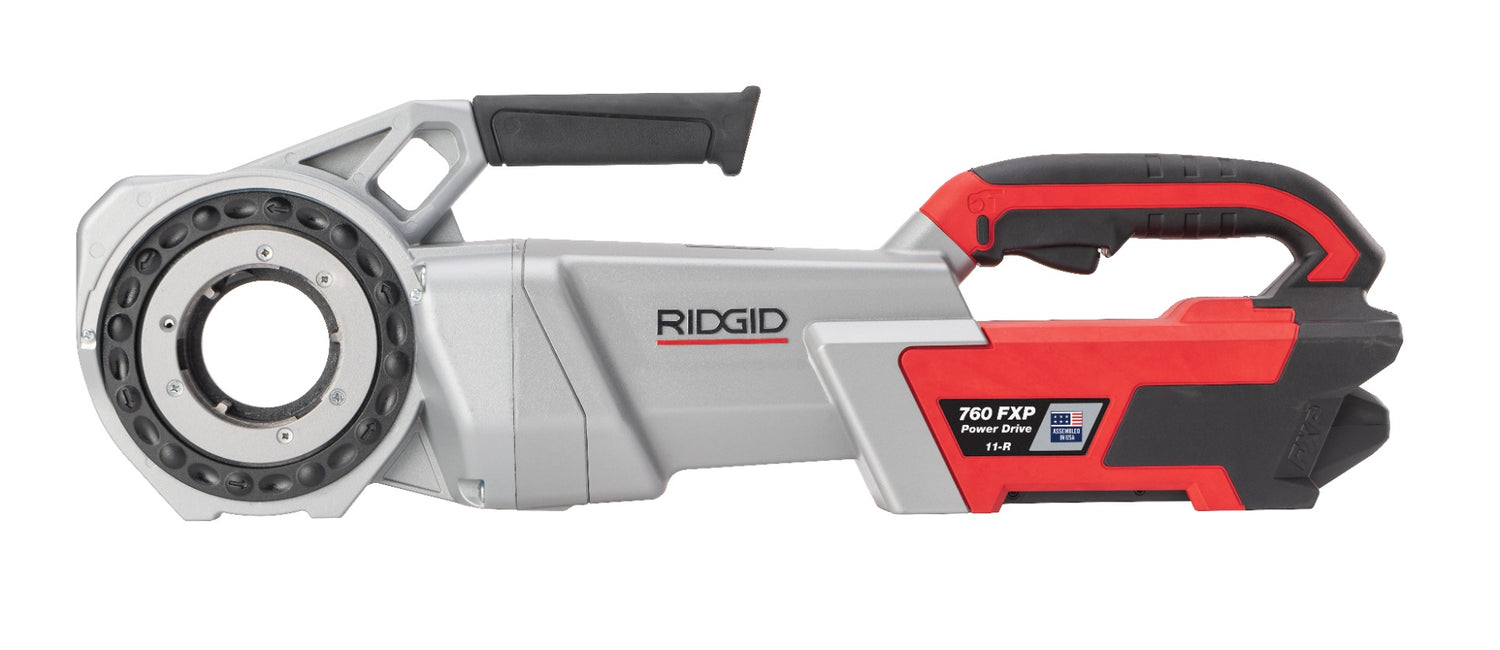

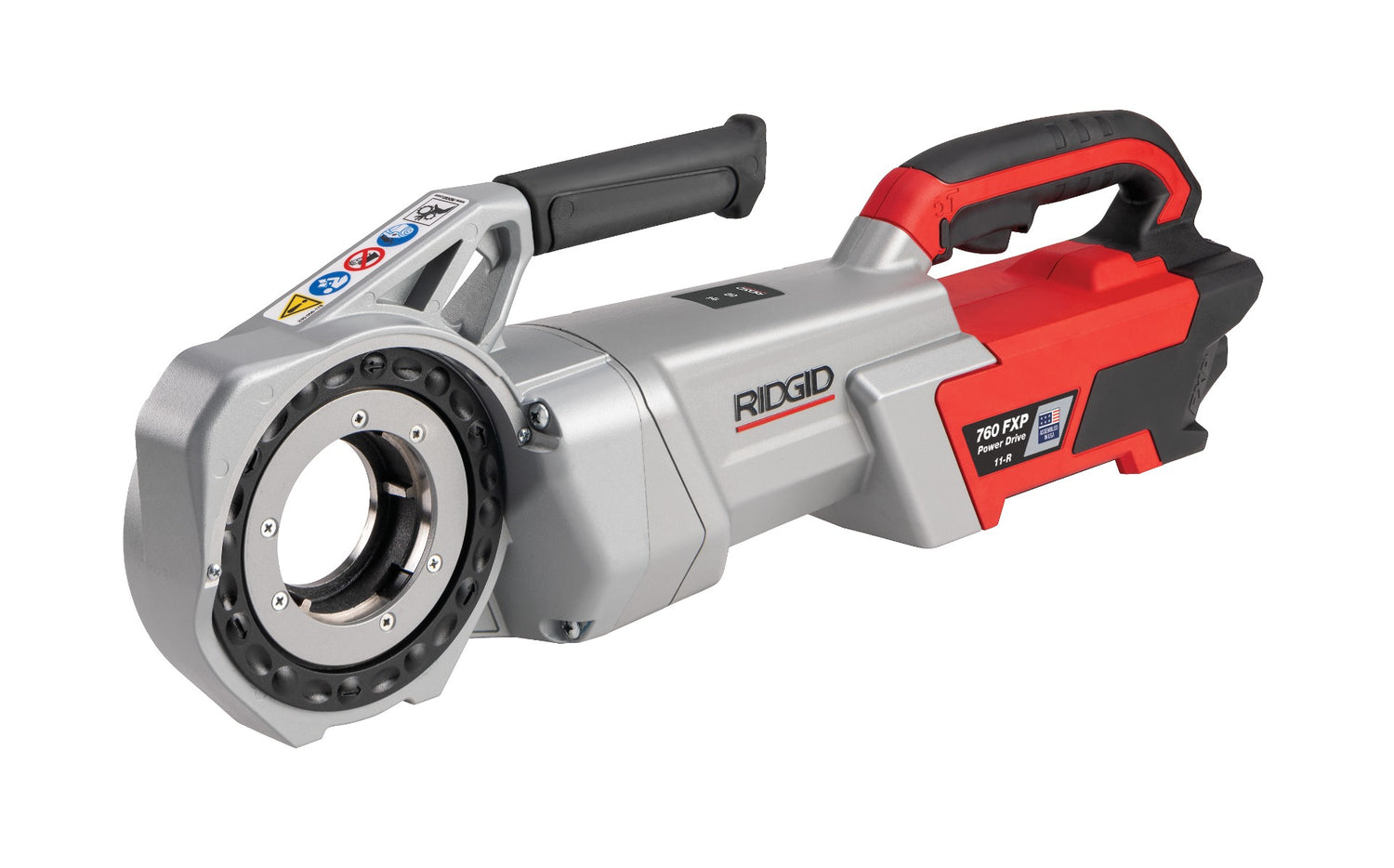

Thread pipe quickly and precisely with the battery-powered RIDGID 760 FXP Power Drive. The FXP Technology Platform offers portability and provides the power to achieve up to 30 2" threads per charge*. When kickback is detected during threading the tool will automatically shut off. The Power Drive also delivers industry-leading speed with added features like workspace lights and LED alerts when the thread is nearing completion. This tool provides everything you need to get the job done.
Features:
-
Cordless Freedom - Complete up to 30 2" threads on a single charge with the FXP Battery Platform*
-
Torque Reaction Shutoff - The tool automatically shuts off if kickback is detected
-
Workspace LEDs - LED near the die head illuminates the work area
-
End of Thread Indicator - LEDs indicate when the thread is nearing completion
-
Palm Pad - Eliminate the need to contact the die headdirectly when starting the thread with a conveniently placed palm pad
-
Connected - Customize, monitor, and manage your tool with the RIDGID Link app
-
Compatibility - Compatible with existing RIDGID die heads and the 258 & 258XL Pipe Cutters (12-R Tool Only)
-
FXP Battery charging times - 4Ah: 40min, 8Ah: 80min
-
*Based on internal testing cutting 2” NPT threads on schedule 40 steel pipe.
Specifications:
|
OD capacity: |
1/8"-2" |
|
Battery system: |
760 FXP 4Ah, 60V Max* |
|
Motor: |
Brushless DC |
|
RPM: |
42, no load |
|
Weight: |
10.9 kg / 24 lbs |
|
Height: |
23.1 cm / 9.1" |
|
Length: |
70.6 cm / 27.8" |
|
Width: |
13.2 cm / 5.2" |
|
Body: |
Aluminum/Glass Filled Plastic |
|
*Maximum battery pack voltage (V Max) is 60V and indicates the required charger output voltage and open circuit battery voltage when fully charged without a workload. This battery does not operate continuously at V Max. Nominal voltage is 54V and approximates the average operational voltage with a workload. This battery operates at a voltage that decreases during discharge. |
